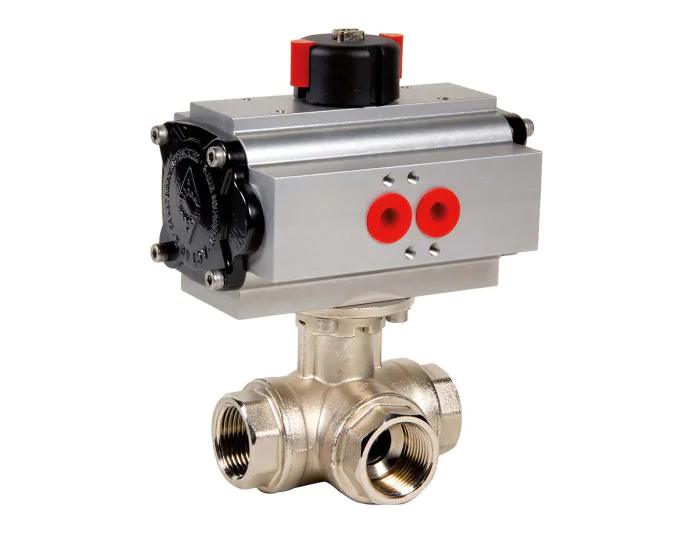

The 513XS L-port 3-way brass ball valve, equipped with either a spring return or double-acting ACTREG pneumatic actuator, features a CW617N body and ball.
| Specification | Value |
|---|---|
| Option certificate 3.1 | No |
| Maximum delta P (bar) | 10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Brass CW614N |
| Adjustable limit screws | Yes |
| ATEX compatible | No |
| DN | DN8 - 1/4'' |
| Face to Face (mm) | 165.0 |
| Body material | Brass CW617N |
| Number of ways | 3 |
| Bore | Full |
| Packing gland | FKM |
| PS (bar) | 16 |
| Connections | BSP FF |
| Seats | PTFE |
| Ball material | Brass CW614N |
| TS max (°C) | 100 |
| TS min (°C) | -10 |
| 3-way type | T-port |
| Pneumatic actuator type | Spring return |
| Ball valve design | 3-piece body |
| Warranty period | 1 year |
| CE | Risk category II |
| Range | HVAC |
| Fire safe | No |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| BSP FF Brass CW617N Full 3-piece body DN8 - 1/4'' | 275010015100 | S1001090 |
€152.76
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN8 - 1/4'' | 275010016100 | S1001091 |
€168.67
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN10 - 3/8'' | 275011015100 | S1001092 |
€152.76
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN10 - 3/8'' | 275011016100 | S1001093 |
€175.03
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN15 - 1/2'' | 275012015100 | S1001094 |
€152.76
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN15 - 1/2'' | 275012016100 | S1001095 |
€175.03
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN20 - 3/4'' | 275013015100 | S1001096 |
€156.20
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN20 - 3/4'' | 275013016101 | S1001097 |
€192.84
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN25 - 1'' | 275014015100 | S1001098 |
€192.34
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN25 - 1'' | 275014016102 | S1001099 |
€262.83
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN32 - 1''1/4 | 275015015101 | S1001100 |
€208.63
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN32 - 1''1/4 | 275015016103 | S1001101 |
€287.86
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN40 - 1''1/2 | 275016015101 | S1001102 |
€285.59
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN40 - 1''1/2 | 275016016104 | S1001103 |
€412.79
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN50 - 2'' | 275017015102 | S1001104 |
€419.81
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN50 - 2'' | 275017016104 | S1001105 |
€523.24
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN8 - 1/4'' | 275030015100 | S1001106 |
€152.76
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN8 - 1/4'' | 275030016100 | S1001107 |
€168.67
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN10 - 3/8'' | 275031015100 | S1001108 |
€152.76
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN10 - 3/8'' | 275031016100 | S1001109 |
€175.03
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN15 - 1/2'' | 275032015100 | S1001110 |
€152.76
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN15 - 1/2'' | 275032016100 | S1001111 |
€175.03
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN20 - 3/4'' | 275033015100 | S1001112 |
€156.20
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN20 - 3/4'' | 275033016101 | S1001113 |
€192.84
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN25 - 1'' | 275034016102 | S1001114 |
€262.83
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN32 - 1''1/4 | 275035015101 | S1001115 |
€208.63
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN40 - 1''1/2 | 275036015101 | S1001116 |
€285.59
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN40 - 1''1/2 | 275036016104 | S1001117 |
€412.79
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN50 - 2'' | 275037015102 | S1001118 |
€419.81
(excl. btw)
|
add to cart |
| BSP FF Brass CW617N Full 3-piece body DN50 - 2'' | 275037016104 | S1001119 |
€523.24
(excl. btw)
|
add to cart |
